Line_operated_thyristor_control_time_delay

Published:2009/7/21 23:24:00 Author:Jessie | From:SeekIC

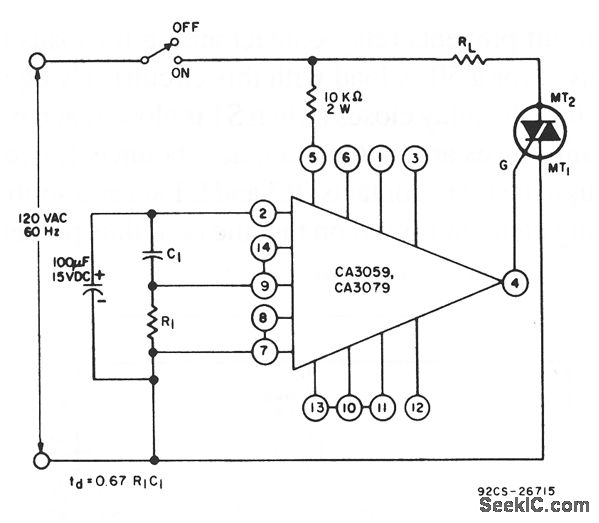

This circuit uses a CA3059 or CA3079 zero-voltage switch to control turn-on time of a triac. The delay between switch closure and turn-on is set by the values of R and C, as shown by the equation.
