Light_deenergized_relay

Published:2009/7/22 21:07:00 Author:Jessie | From:SeekIC

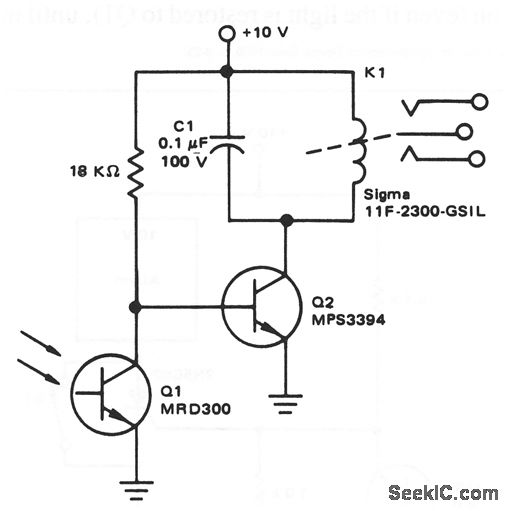

This circuit shows an MRD300 phototransistor that is used to control a relay, where the relay is deenergized when light is applied to Q1.
