The circuit diagram of multiplication circuit 2 (MPY100)

Published:2011/8/6 0:14:00 Author:Felicity | Keyword: multiplication circuit | From:SeekIC

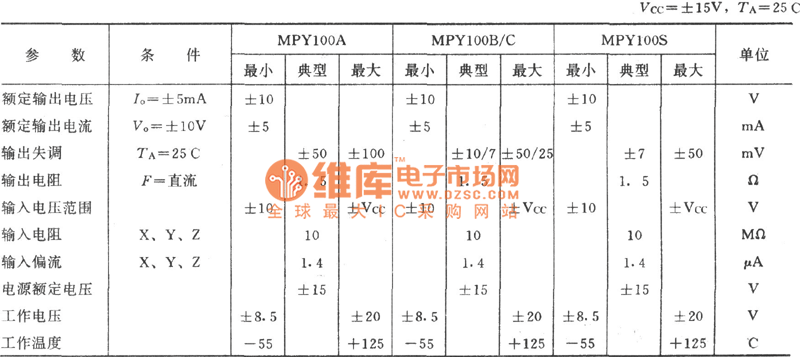

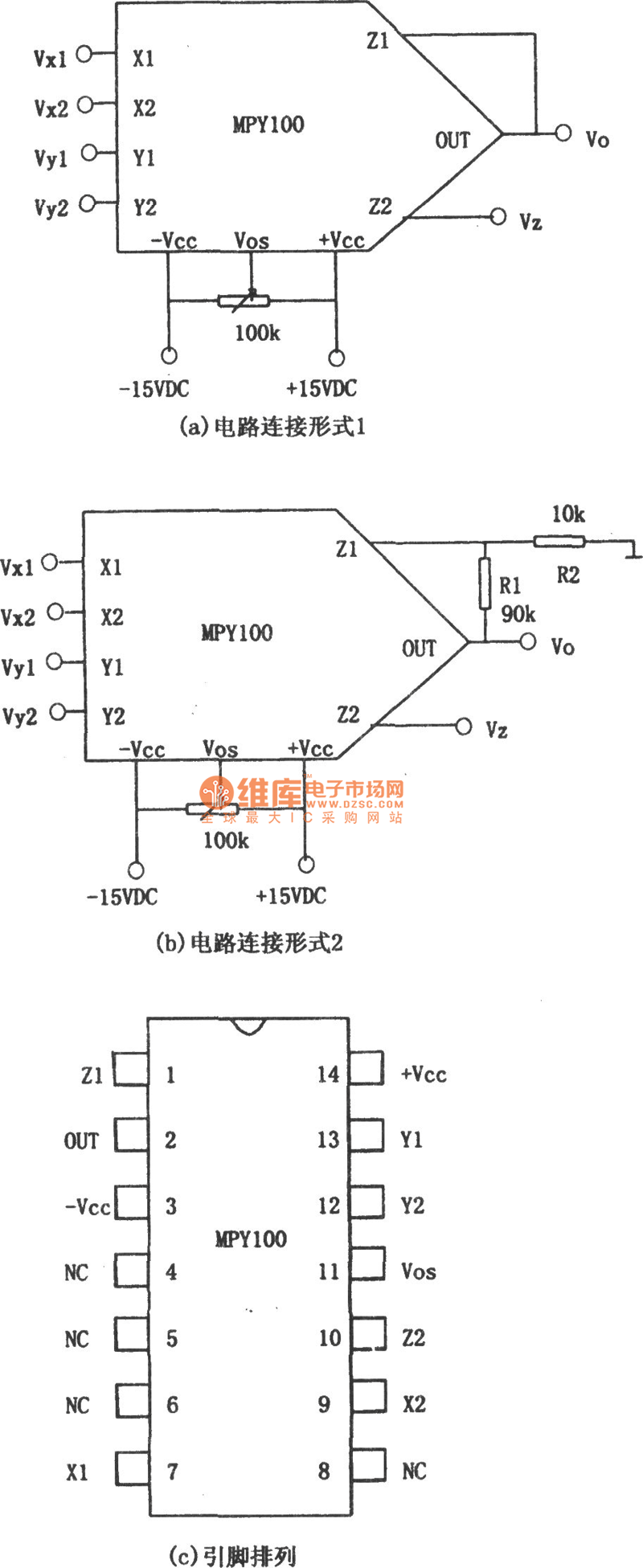

The increase of the factor of proportionality causes the Offset Voltage to rise, and this need zero modulation. Besides it can narrow the bandwidth. The figure shows the circuit diagram of multiplication circuit 2 (MPY100). Main parameters of MPY100:
