MPY100 Division circuit

Published:2011/8/19 1:41:00 Author:Jessie | Keyword: Division | From:SeekIC

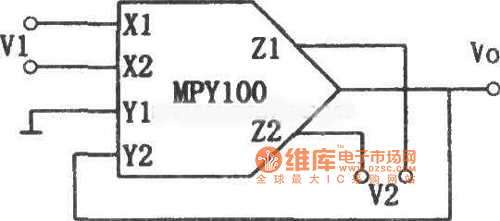

This circuit is composedof multiplier-division integrated circuit MPY100. Input signals are V1, V2, output Vo is: Vo=10V2/V1. This kind of division is composedof multiplieraccessed tofeedback loop of op-amp. V1's input range is -0.2 V to 10V, V2's input range is -10 V to 10V. Circuit's error is bigger, whenV1 is very small.
