Complementary dimming circuit

Published:2011/3/20 22:24:00 Author:Joan | Keyword: Complementary , dimming | From:SeekIC

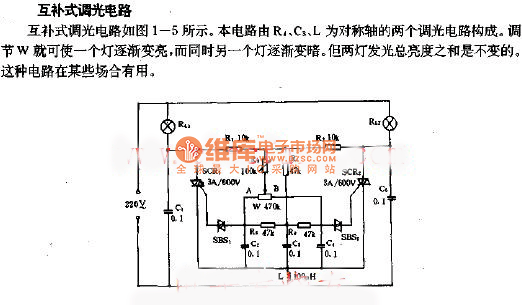

Complementary dimming circuitComplementary dimming circuit is shown in Figure 1-5, the circuit consists of two dimming circuit of which R1, C3, L are the axises of symmetry. W can be adjusted gradually to make a bright light, while the other light gradually dims. However, the total brightness of the two lamps is constant. This circuit is useful in certain situations.
