2D lamp controller

Published:2012/7/25 2:59:00 Author:Ecco | Keyword: 2D lamp , controller | From:SeekIC

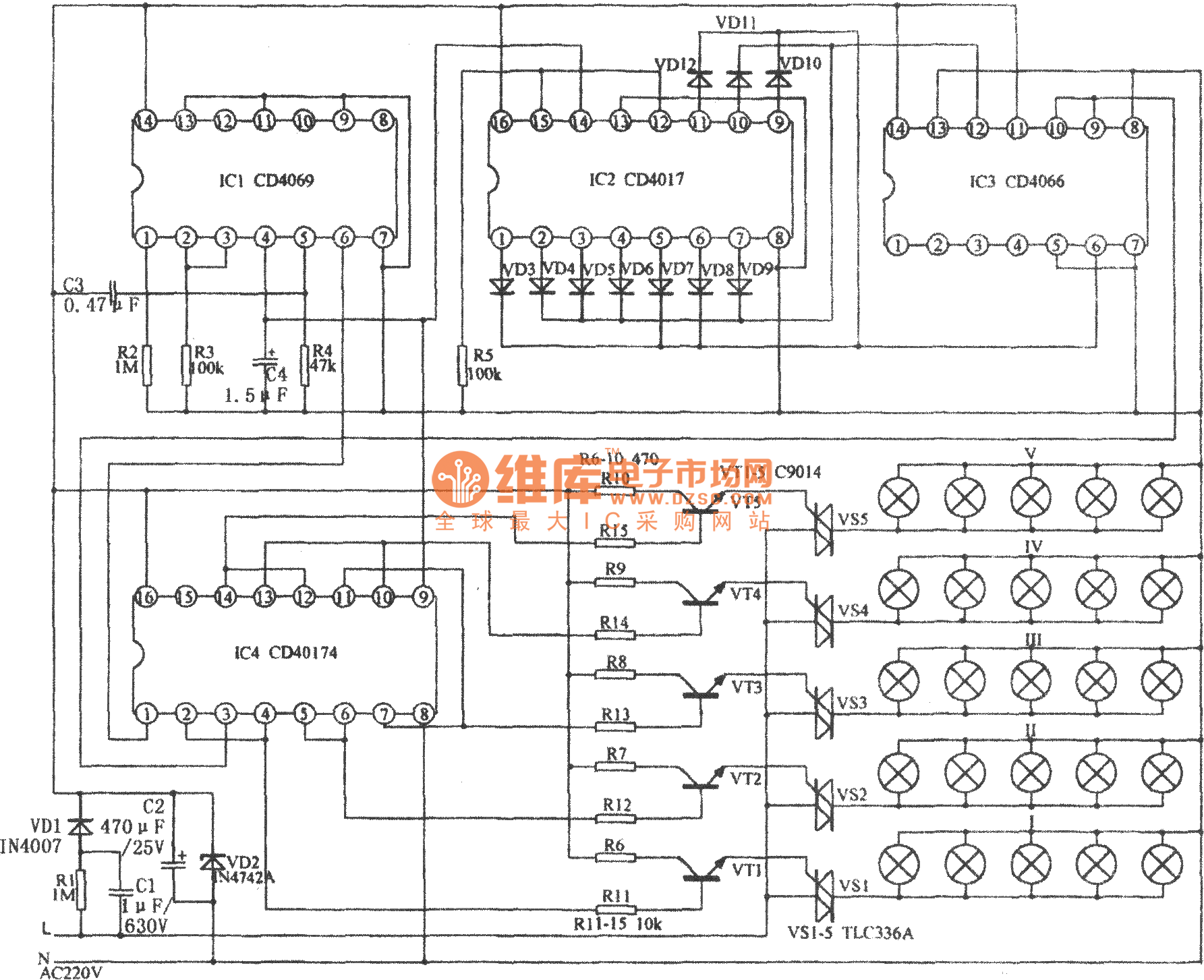

As shown in the figure, the circuit is mainly composed of the NAND gate IC1 (CD4096), counting / timing distribution circuit IC2 (CD4017), analog electronic switch IC3 (CD4066) and D trigger IC4 (CD40174). The lamp controller can control five groups of Lanterns to be lit and extinguished progressively. If a certain number of lanterns are connected in combination, you can create a scene with color change on the plane. It is more rich and colorful than usually control the flowing of the color in a line.
