LOW_NOISE_UHF_TV_TUNER

Published:2009/7/23 21:53:00 Author:Jessie | From:SeekIC

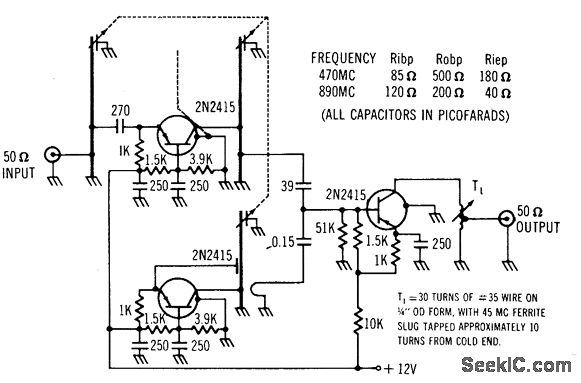

Input is tunable from 470 to 890 Mc, and output is 45 Mc.Gain is 3 to 9 db over uhf band, with typical noise figure of 7 to 9 db.-Texas Instruments Inc., Solid-State Communications, McGraw-Hill, N.Y., 1966, p 299.
