LOW_DISSIPATION_TRANSISTOR_OVERVOLT_AGE_FUSE

Published:2009/7/21 10:45:00 Author:Jessie | From:SeekIC

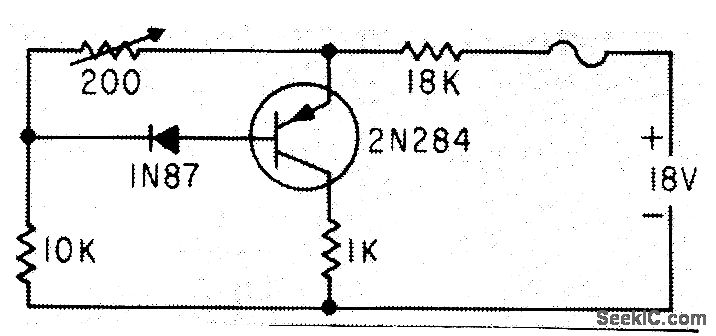

Series collector resistor lowers dissipation of fuse circuit during normal line voltages, and serves also as voltage regulator for transistors being protected (represented by 1K load).-K. Redmond, Low-Cost Transistor Overload Safety Circuit, Electronics, 33:42, p 102.
