LM317 Voltage Regulator

Published:2012/11/26 0:51:00 Author:muriel | Keyword: LM317 , Voltage Regulator | From:SeekIC

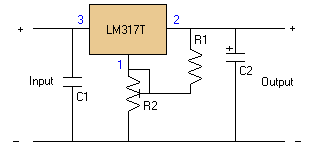

I constructed this voltage regulator to power my two way mobile radio from the car cigarette lighter circuit. It has many other uses and the voltage can easily be adjusted by the use of a potentiometer. The voltage regulator is an LM317T, and should accept up to about 14 volts without problems. It can handle up to 1 amp, but you WILL need a heatsink on the voltage regulator.
