LIGHT_DIMMER_SPEED_CONTROL

Published:2009/7/9 22:39:00 Author:May | From:SeekIC

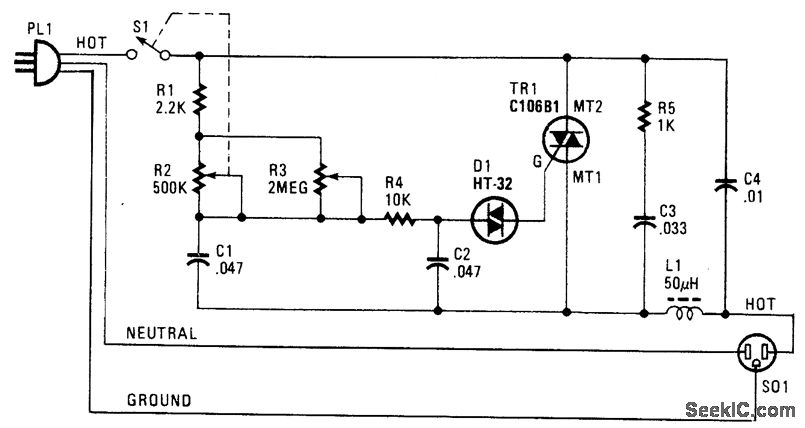

A phase-controlled triac (HT-32) circuit provides control of effective voltage at load. Do not omit L1 and C4 because they are for RFI suppression. The maximum load is about 500W. WARNING: 120 Vac is present on this circuit-provide adequate insulation and construction techniques.
