LIGHT_BEAM_COUPLING

Published:2009/7/24 4:14:00 Author:Jessie | From:SeekIC

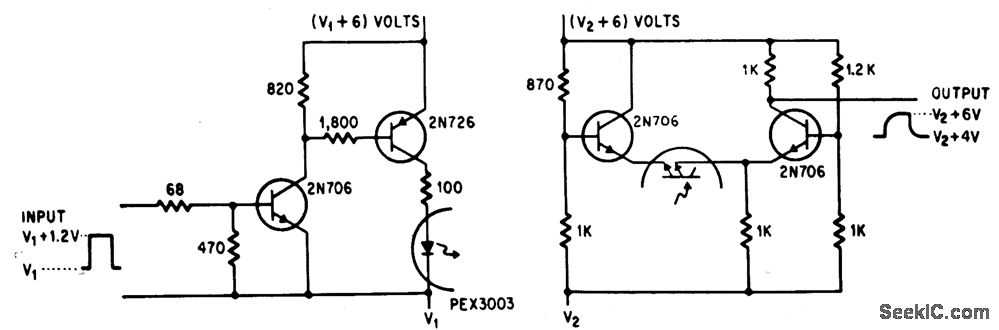

Gallium arsenide light source and silicon photodetector prevent interaction between drive circuit and output of binary switch.-E. L. Bonin, Light-Coupled Semiconductor Switch for Low-Level Multiplexing, Electronics, 38:3, p 54-59.
