LEAKAGE_TESTER_1

Published:2009/7/23 22:05:00 Author:Jessie | From:SeekIC

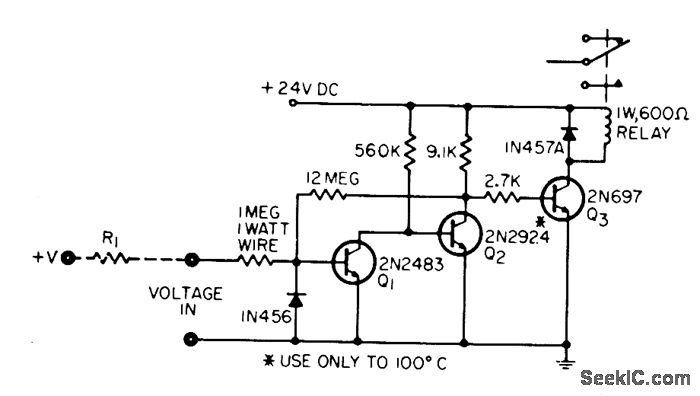

High-reliability current-detecting Schmitt trigger responds to nanoampere inputs for leakage testing of capacitors, diodes, and insulation, yet is not damaged or even affected by overloads of 1,000 v at input. Input of 300 no will trigger output relay.-P. Lefferts, Schmitt Triggers on Nanoamp Inputs, EEE, 14:6, p 91.
