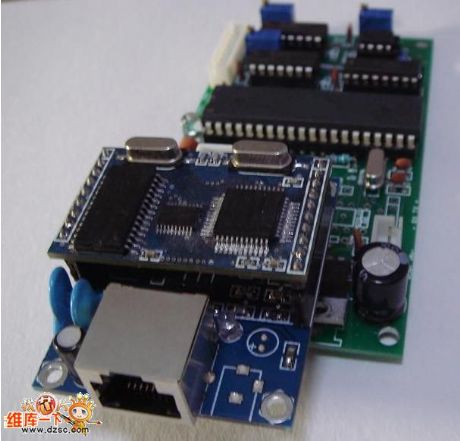

LAN (Ethernet) controlling AD ADC, analog data acquisition module

Published:2011/9/8 3:11:00 Author:Lucas | Keyword: LAN , Ethernet, controlling , AD ADC, data acquisition module | From:SeekIC

The local area network (Ethernet) controlling AD ​​ADC / analog data acquisition module uses TCP / IP protocol and control host (PC) to communicate, and it is stable and reliable. Transmission distance is far ( it is up to 300 meters through the switch cascaded, even through it can the remote control by the Internet), each AD conversion / data acquisition board is assigned an unique IP address, and it makes data transmission and distinction by IP address; the controlled AD conversion / data acquisition board has a large number (IP address range: 192.168.1. 1 ~ 192.168.1.254, you can drive total of 254 AD conversion / data acquisition boards). The control panel has 6 channels of 10-bit (precision is ± 1LSB) high-speed A / D converter channels.
