KA3S0680R--the switch power supply thick film integrated circuit

Published:2011/7/13 20:11:00 Author:Borg | Keyword: switch power supply, thick film, integrated circuit | From:SeekIC

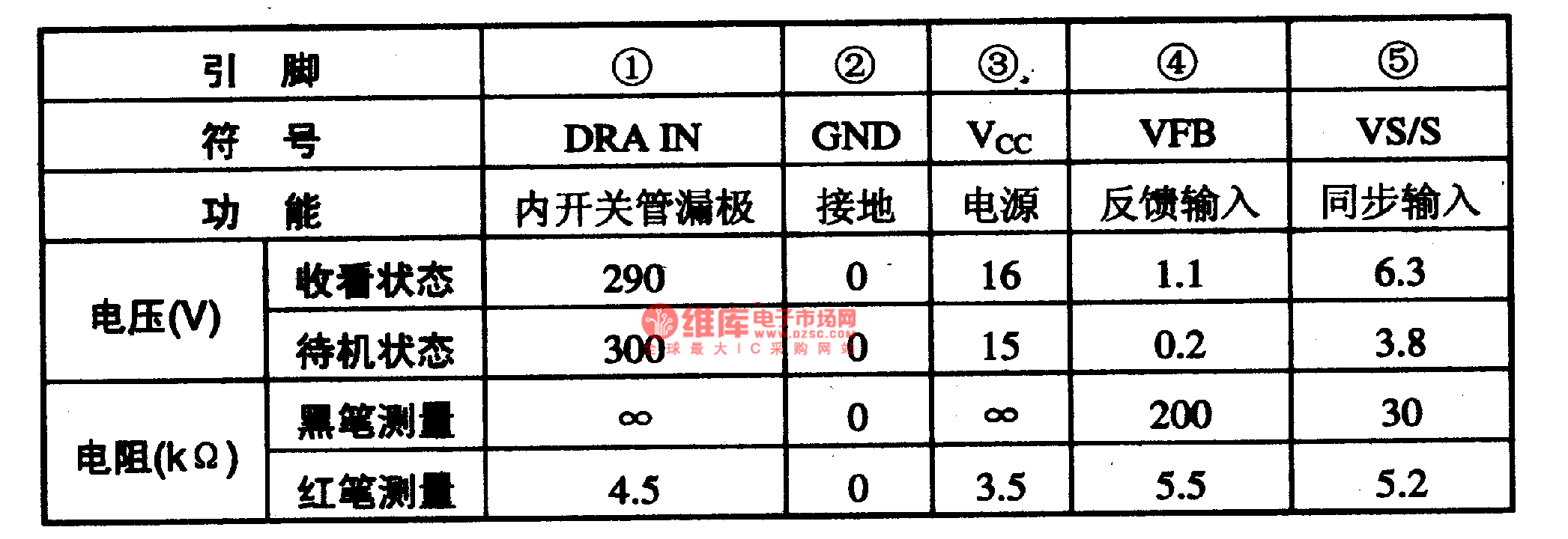

KA3S0680R is a switch power supply thick film integrated circuit produced by Samsung, which is widely used in Haier-Gaomei large screen color TV sets, such as GBTV-29FA RGBTV-29TA, 29F18 and so on.1.function featuresKA3S0680R contains the switch pipe, switch pipe motivation amplifier circuit, fault detection signal process circuit, synchronous signal process circuit and other additional circuits.2.pin functions and dataKA3S0680R is in 5-pin single in-line package, whose pin functions and data are listed in table 1-1.
