Inversion sampling and maintaining circuit diagram

Published:2011/9/13 2:35:00 Author:Rebekka | Keyword: Inversion sampling , maintaining | From:SeekIC

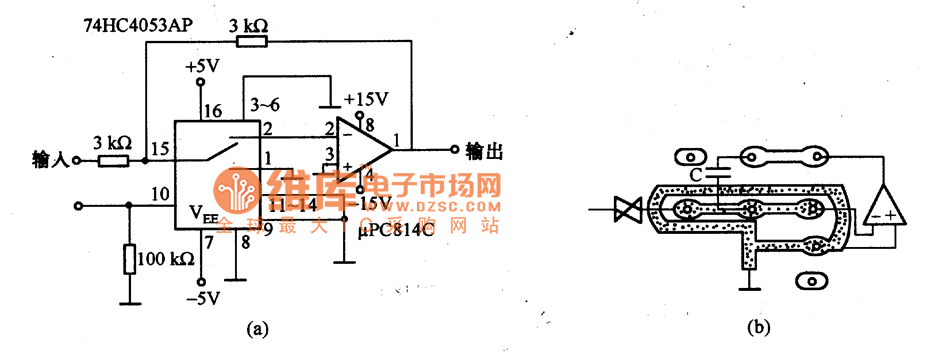

Figure (a) is the inversion sampling and maintaining circuit diagram. When it is maintaining, the op amp's inverting input is in high impedance. The potential of this part is 0. It uses the potential as the protection ring. The circui is shown in figure (b).
