Infrared reflecting automatic lamp circuit(TX05D)

Published:2011/7/4 2:48:00 Author:zj | Keyword: Infrared reflecting, automatic lamp | From:SeekIC

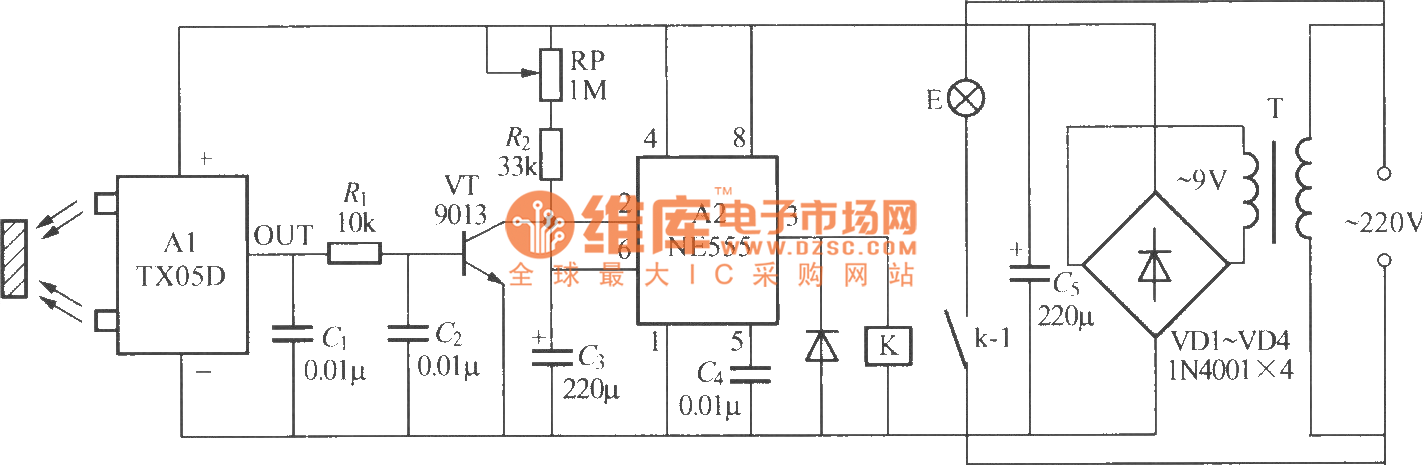

As the diagram shows it is a practical infrared reflecting automatic lamp circuit. When you go closely to it,the lamp lights up.When you leave, the lamp goes out. It can be used for home storage room, bathroom lighting or dresser mirror front lamps and other occasions.
