Infra Red Switch

Published:2012/11/21 2:00:00 Author:muriel | Keyword: Infra Red, Switch | From:SeekIC

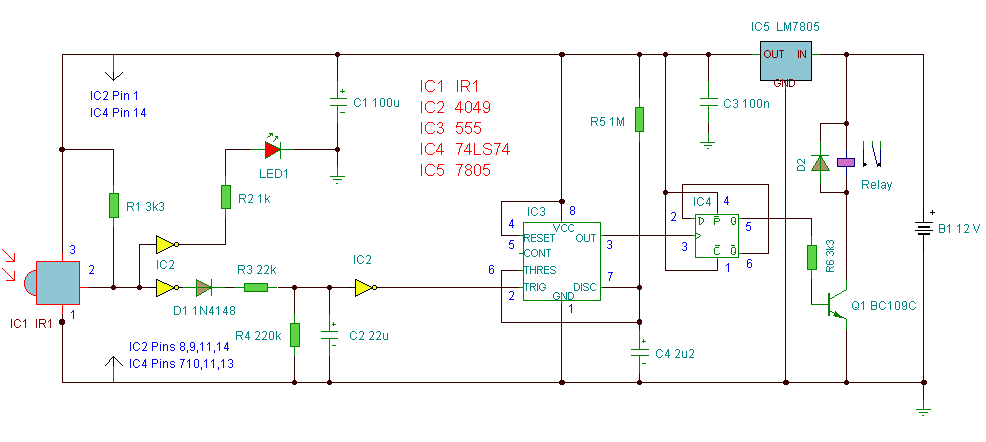

This is a single channel (on / off) universal switch that may be used with any Infra Red remote control using 36-38kHz. (This is a very common remote handset frequency). In place of IR1 a TSOP1738 receiver may be used.
