Inexpensive_high_performance_gain_control_circuit

Published:2009/7/21 2:56:00 Author:Jessie | From:SeekIC

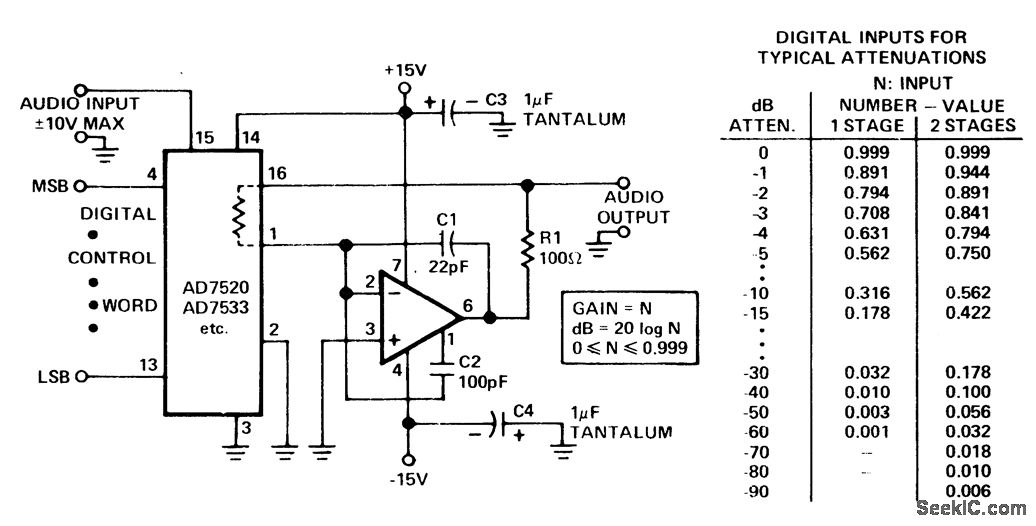

Inexpensive high-performance gain control circuit (courtesy Analog Devices, Inc.).
