INDUCTIVE_TELEMETRY_FOR_SPIN_TEST

Published:2009/7/22 20:22:00 Author:Jessie | From:SeekIC

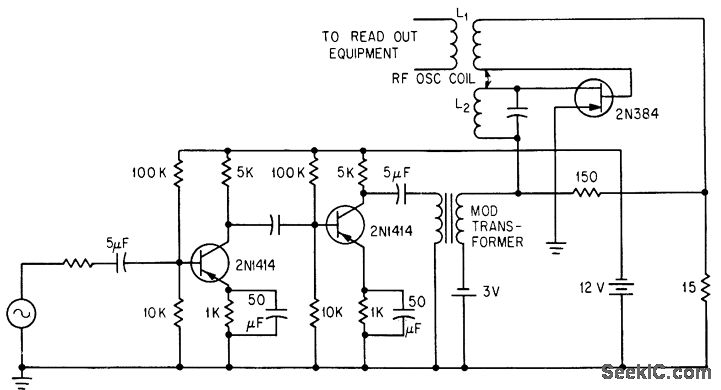

Transistors in modulated oscillator-transducer package withstand over 6,000 rpm on spin test while radiating measured data inductively from oscillator coils L1-L2 to stationary coil of readout equipment.-H. Baumann, Inductive Telemetry Improves Spin-System Measurements, Electronics, 36:46, p 41-42.
