INDUCTION_HEATER_CONTROL

Published:2009/7/14 3:34:00 Author:May | From:SeekIC

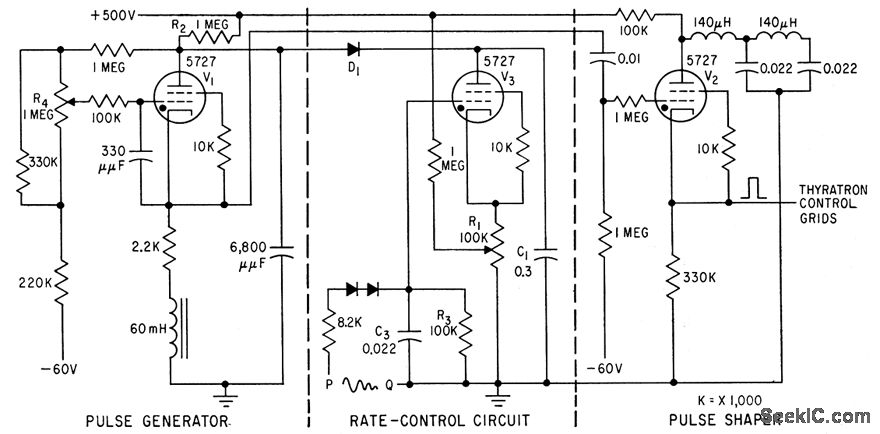

Thyratron n pulse generator V1 produces voltage pulses of adjustable frequency for pulse shaper V2, which drives hydrogen thyatrons of high-power induction heater. V3 regulates repetition rate of pulses by acting as switch that, when conducting, allows C1 to discharge rapidly through R1.-H. L. Van Der Horst, How Radar Techniques Improve Induction Heating, Electronics, 32:7, P 51-55.
