INDEPENDENT_PULSE_WIDTH_CONTROL

Published:2009/7/14 21:42:00 Author:May | From:SeekIC

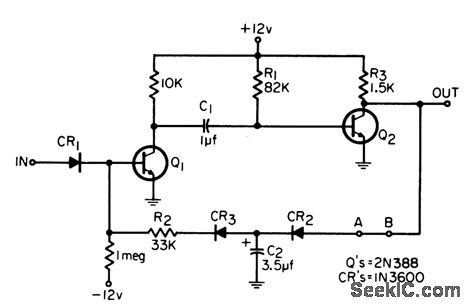

With components shown, circuit will divide 50-millisec pulses by 5 without changing pulse width. Other components give different widths along with division.-J. McGruder, Frequency Divider With Independent Pulse-Width Control, EEE, 14:2, p 69.
