IGNITRON_SHORTS_SPARK_GAP

Published:2009/7/24 4:07:00 Author:Jessie | From:SeekIC

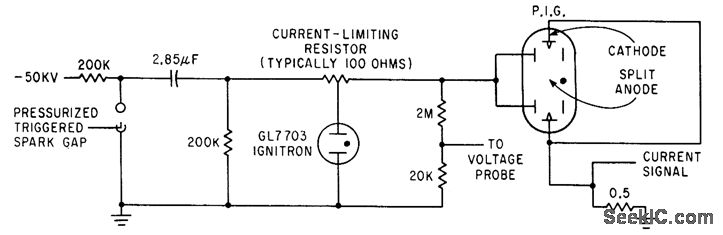

Used for continuous production of plasma in mirror-geometry magnetic Geld of Philips ionization gage. Ignitron shorts spark gap about 100 microsec aftet discharge begins. Ionization gage (PIG) receives positive potential at peak of externally applied magnetic fold by dosing of triggered spark gap.-M. F. Wolff, Plasma Engineering-Part 1 : Generating and Heating Plasma, Electronics, 34:24, p 47-53.
