High gear stepping dimmer controller circuit (1)

Published:2011/6/28 1:59:00 Author:Ecco | Keyword: High gear, stepping, dimmer, controller | From:SeekIC

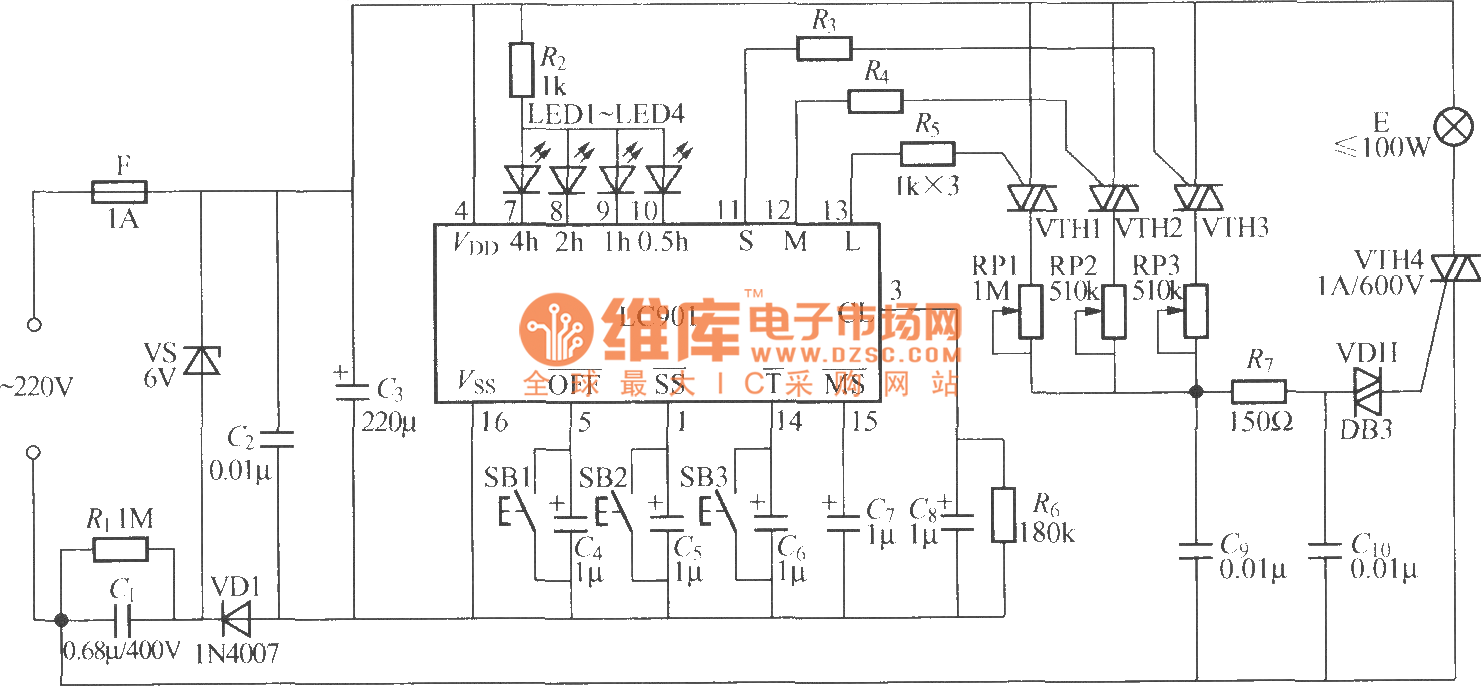

The chart shows the high gear stepping dimmer controller circuit, which has four gears to control stong, medium, weak, extinguish, and it also has four different timing blocks in 0.5h, 1h, 2h and 4h.
