HI_POT_TESTER

Published:2009/7/22 20:24:00 Author:Jessie | From:SeekIC

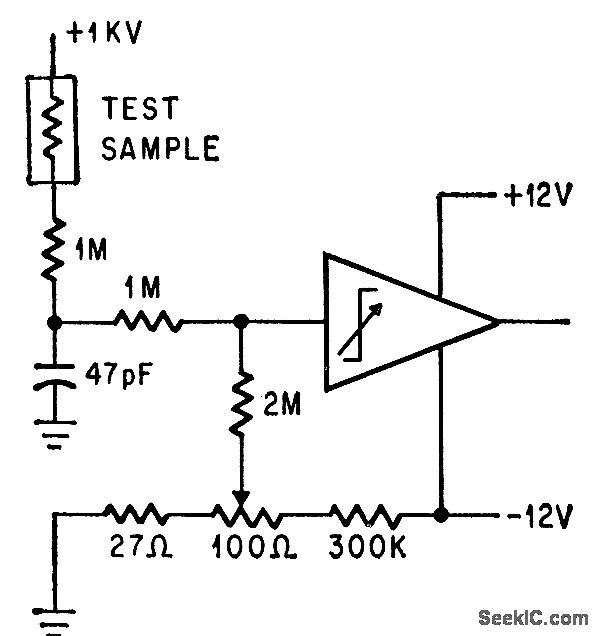

Operational trigger trips when resistance of sample under test is less than 500,000 meg.-P. Lefferts, Operational Trigger For Precise Control, Electronics, 37:28, p 50-55.
