HIGH_TOGGLE_RATE_HIGH_FREQUENCY_ANALOG_SWITCH

Published:2009/6/25 21:49:00 Author:Jessie | From:SeekIC

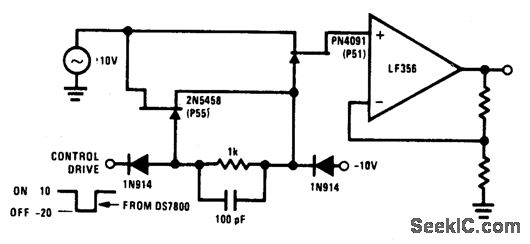

Commutator circuit provides low tmpedance gate drive to the PN4091 analog switch for both on and offdrive conditions．This circuit also approaches the ideal gate drive conditions for high frequency signal handling by providing a low ac impedance for off drive and high ac impedance for on drive to the PN4091
