HALF_WAVE_DRIVE_FOR_D_C_MOTOR

Published:2009/7/22 1:54:00 Author:Jessie | From:SeekIC

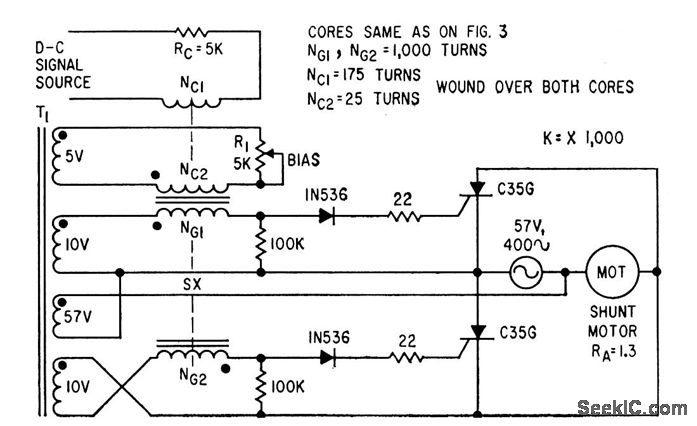

Uses controlled recliners to control armature of d-c shunt motor or d-c torquer, for applications requiring push-pull output for reversible drive. Saturable reactor control windings ore wound over both cores together. Maxi-mum current during reversal from top speed in one direction to top speed in opposite direction is approximately 20 amp, with cur rent dropping to 10 amp in 0.1 sec.-W. R. Seegmiller, Controlled Rectifiers Drive A-C and D-C Motors, Electronics, 32:46, p 73-75.
