HALF_WAVE_AC_PHASE_CONTROLLED_CIRCUIT

Published:2009/6/25 2:05:00 Author:May | From:SeekIC

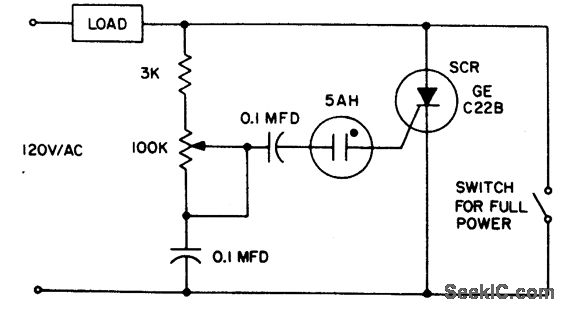

The 5AH will trigger when the voltage across the two 0.1 μF capacitors reaches the breakdown voltage of the lamp. Control can be obtained full off to 95% of the half wave RMS output voltage. Full power can be obtained with the addition of the switch across the SCR.
