Gas stove flameout sound and light alarm circuit

Published:2011/9/2 3:02:00 Author:Christina | Keyword: Gas stove, flameout, sound, light, alarm circuit | From:SeekIC

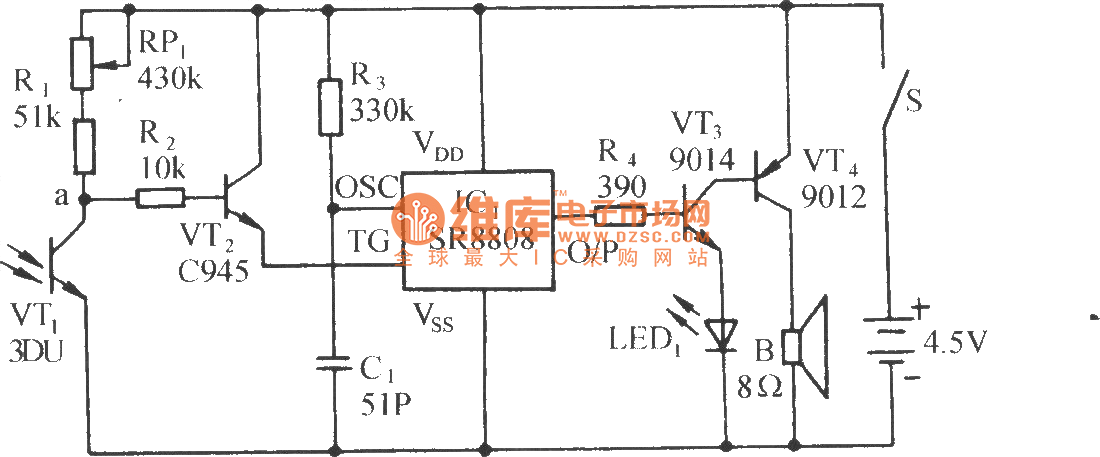

In the process of using, the stove fire always extinguished by the wind or water, it is very dangerous when there is no people. This gas stove flameout sound and light alarm circuit can send out the sound and light alarm signal when the fire is extinguished to remind the user. The circuit is as shown in the figure.
