GENERIC_TAIAC_SWITCH_INTERFACE_FOR_RESISTIVEL_LOAD

Published:2009/7/17 1:29:00 Author:Jessie | From:SeekIC

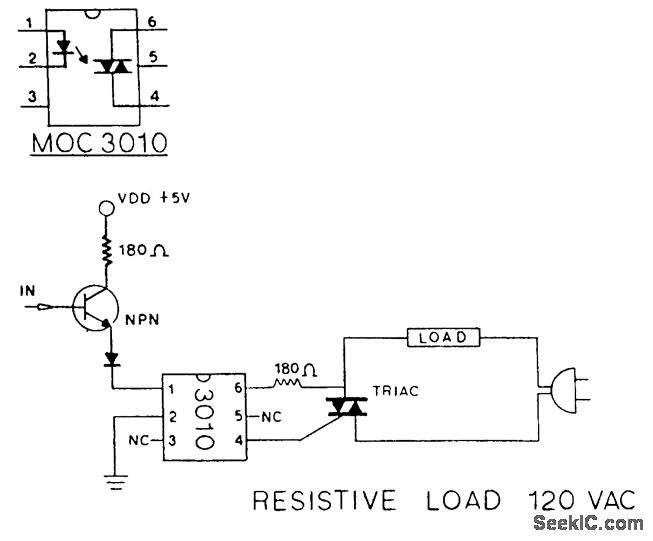

A TTL level input turns on the MOC3010 optocoupler and triggers the triac，applytng 120 Vac tothe load.
