GATE_TURNOFF_D_C_CIRCUIT_BREAKER

Published:2009/7/24 4:07:00 Author:Jessie | From:SeekIC

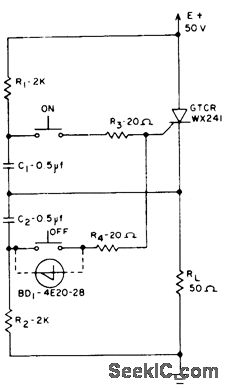

Closing on switch discharges C1 into gate to initiate turn-on. Closing off switch discharges C2 out of pate, opening power circuit.-J. W. Motto, Jr., Switching Circuits Using the Gate Turnoff Controlled Rectifier, EEE, 13:3, p 52-55.
