Frost Alarm (2)

Published:2011/5/14 4:13:00 Author:Sue | Keyword: Frost, Alarm | From:SeekIC

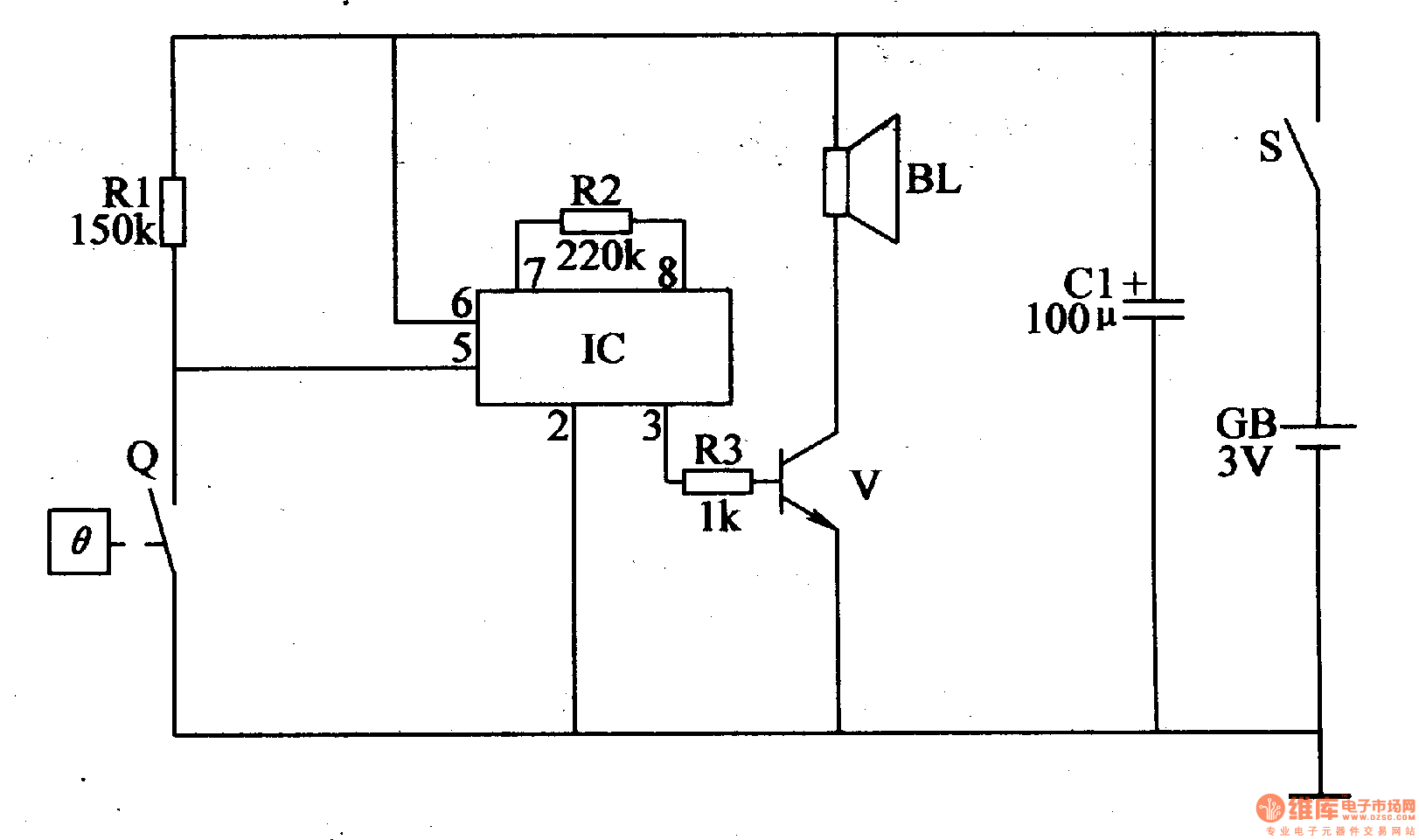

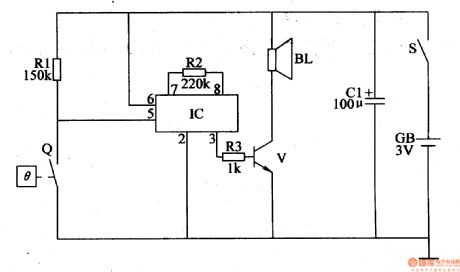

Working Principle: As seen in the figure 4-110, the frost alarm circuit consists of power circuit, temperature detection controlled circuit and alarm circuit. When S is connected, the alarm circuit prepares to work. When the temperature is higher than 1℃, Q is disconnected and the alarm circuit doesn't work, and BL makes no sound. When the temperature is lower than1℃, Q is connected and IC begins to work. IC's 3 pin will output audio electric signal, which will promote BL to make a warning sound after the signal is amplified by V.
