Flashing light control circuit

Published:2012/12/2 21:37:00 Author:Ecco | Keyword: Flashing light , control | From:SeekIC

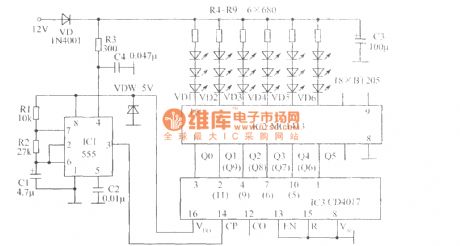

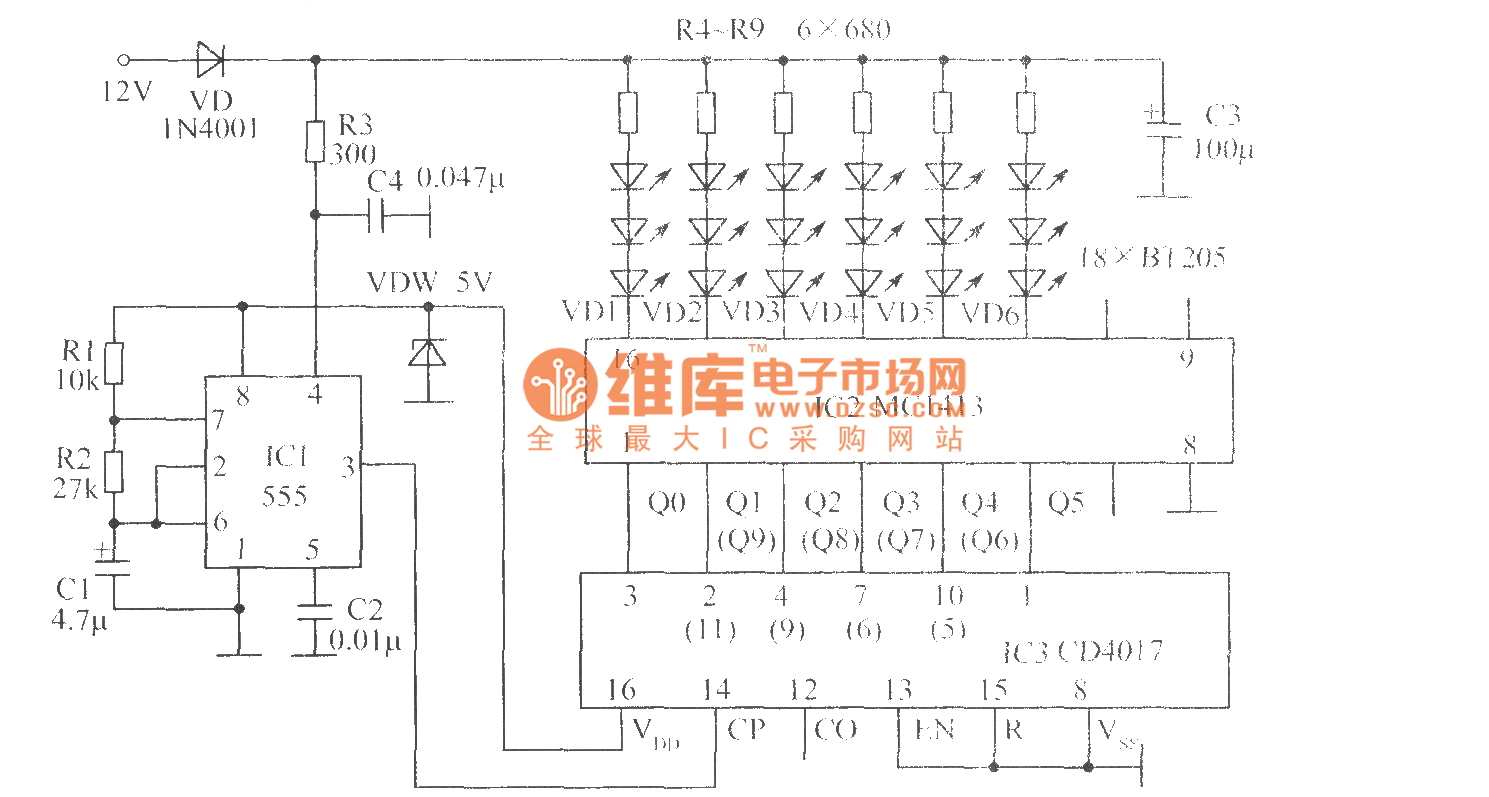

This wonderful scene can be realized through the flashing light control circuit installed below the front headlights or trunk parts. Actual line is shown as the figure. The circuit uses three integrated circuits which are coupled with clever circuit connection, when the motorcycle is driven at night, it can make lanterns flicker constantly to produce aesthetic effect like line flowing water. This flashing light control circuit can also be used for the festive lighting control or other applications. 555 time base circuit is connected to resistors R1, R2 and capacitor C1 to constitute astable multivibrator, and it generates about 5Hz clock signal for counting pulses as decimal / distributor CD4017.
