FULL_WAVE_TD_SCR_CONTROL

Published:2009/7/13 3:51:00 Author:May | From:SeekIC

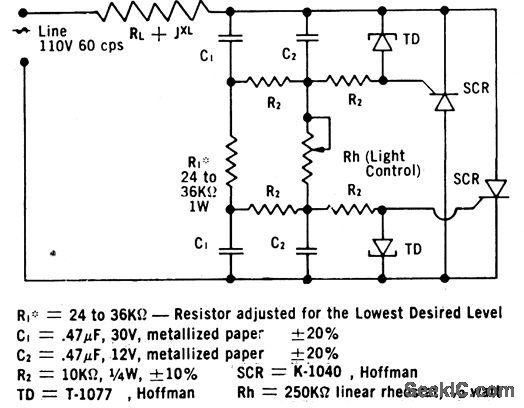

Use of funnel diode between gate and cathode of each scr improves control performance of scr, to give triggering rcmge of 10° to 175°. Input sensor Rh may be photocell or any other resistive fransducer.-TD/SCR Combos for Sale, EEE, 12;3, p62-64.
