FULL_WAVE_SPEED__REGULATOR

Published:2009/7/22 1:48:00 Author:Jessie | From:SeekIC

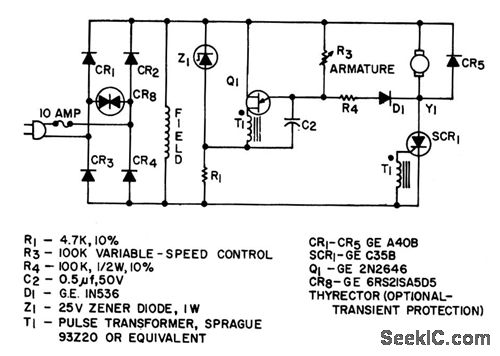

Features closed-loop feedback armature control to regulate speed of 0.5-hp shunt-wound d-c motor over 6:1 range .-“Silicon Controlled Rectifier Mannual,” Third Edition, General Electric Co,164,p145.
