FULL_WAVE_SCR_CONTROL

Published:2009/6/25 1:51:00 Author:May | From:SeekIC

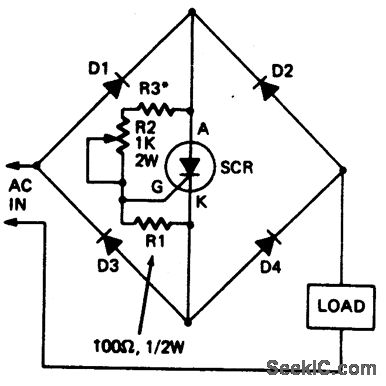

This circuit enables a single SCR to provide fullwave control of resistive loads. Resistor R3 should be chosen so that when potentiometer R2 is at its minimum setting, the current in the load is at the required minimum level. Diodes should have same current and voltage rating as the SCR.
