FULL_WAVE_CONTROL_

Published:2009/7/13 4:23:00 Author:May | From:SeekIC

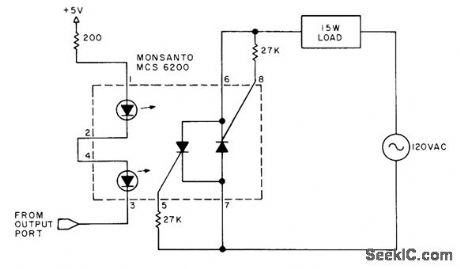

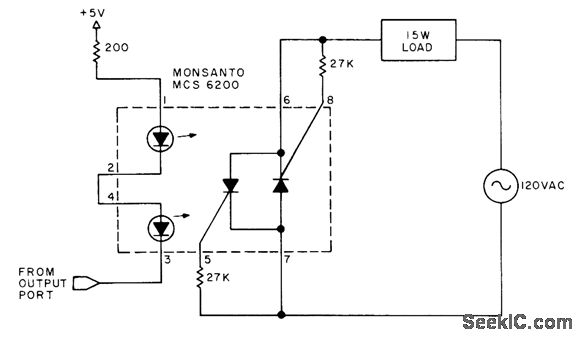

Monsanto MCS6200 dual SCR optocoupler provides direct full-wave control of 15-W lamp or other AC device when driven by output logic voltages of microprocessor. LEDs are connected in series and photo-SCRs in reverse parallel to create equivalent of triac.-H. Olson, Controlling the Real World, BYTE, March 1978, p 174-177.
