FIELD_EFFECT_TRANSISTOR_CONTROLS_PULSE_OSCILLATOR

Published:2009/7/22 2:05:00 Author:Jessie | From:SeekIC

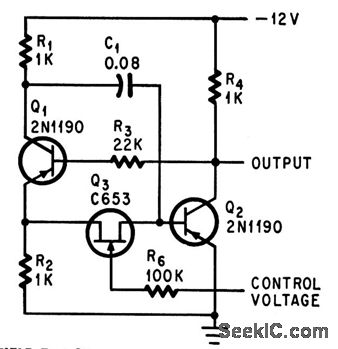

C653 transistor serves as voltage-controlled nonlinear resistor that varies time constant of oscillator. Can generate narrow output pulses at rates up to several Mc, to drive stepping motor.-T. C. Ross, Field-effect transistor Controls Pulse Oscillator, Electronics, 37:18, p 80-81.
