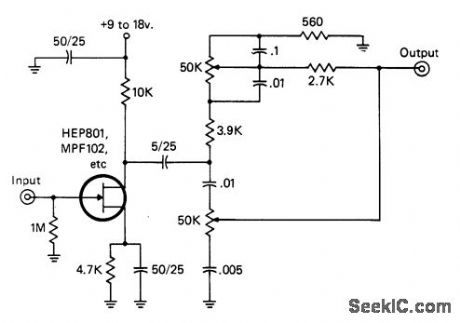

FET_PREAMP_WITH_TONE_CONTROLS

Published:2009/6/29 2:13:00 Author:May | From:SeekIC

Developed for use with simple 2-W audio amplifier when testing very low-level output circuits and microphones. Will not load circuit to which input is connected. Optional bass/treble tone controls are included.-J. Schultz, An Audio Circuit Breadboarder's Delight, CQ Jan. 1978, p 42 and 75.
