FAST_INDUCTIVE_SWITCHING

Published:2009/7/24 3:58:00 Author:Jessie | From:SeekIC

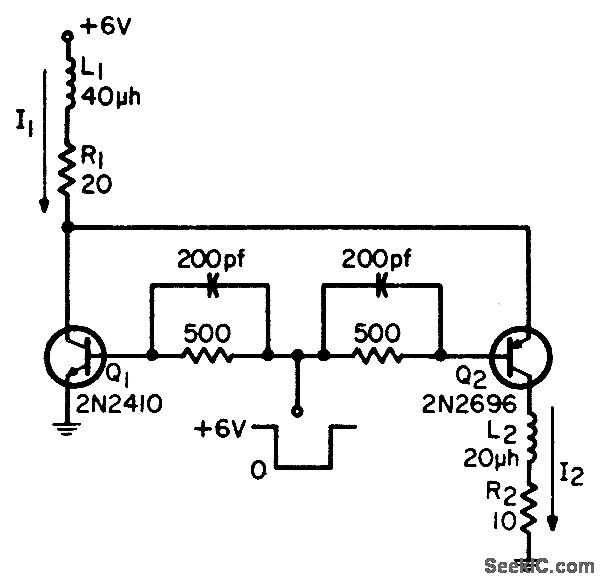

Fast-rise current switching circuit provides current as fast as it can be switched into highly inductive load. Used as current driver for digital com purer memory arrays as well as for speeding up ordinary relays.-T. W. Collins, Fast-Rise Current Switch, FEE, 13:1, p 65-66.
