FAN_SPEED_CONTROL

Published:2009/7/17 4:14:00 Author:Jessie | From:SeekIC

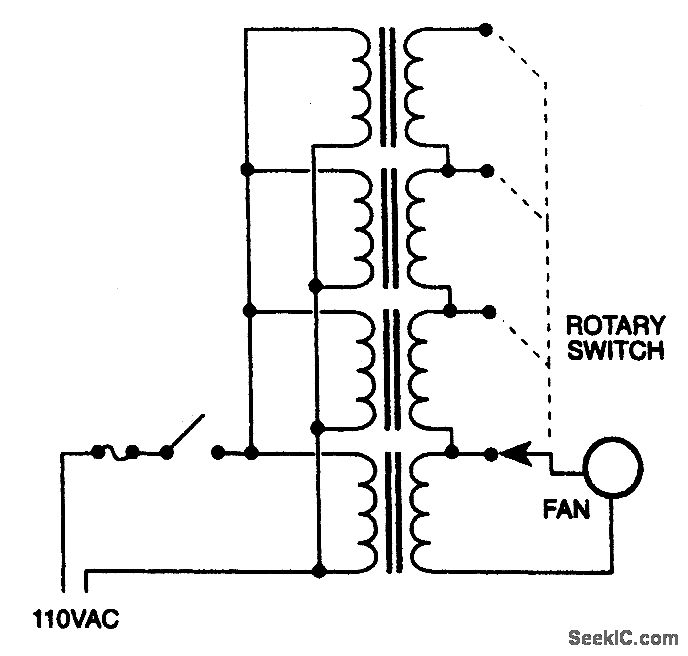

Several 24-V 1.5-A transformers can be used as a speed control, where a triac would be usable,such as on an induction motor. Connect the primaries in parallel and shown.
