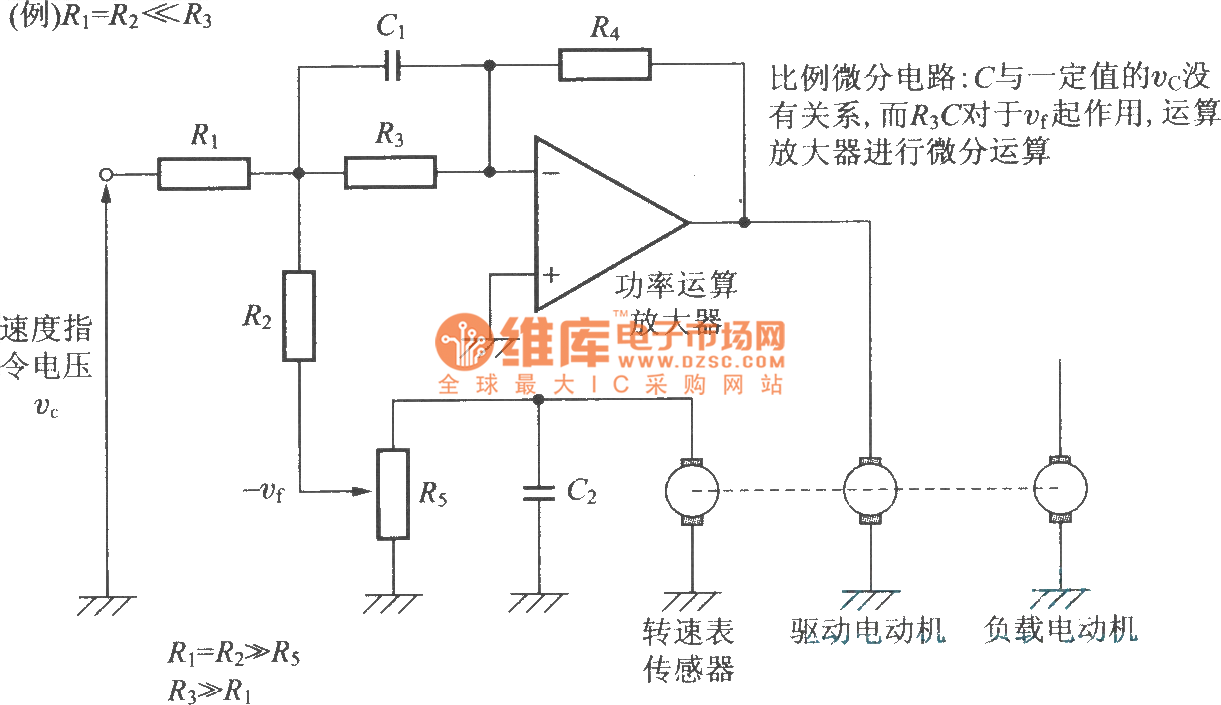

Example of the speed control circuit

Published:2011/9/4 22:16:00 Author:TaoXi | Keyword: Example, speed control | From:SeekIC

Proportional-derivative circuit: C has no relationship with the certain value of Vc, R3C has the function to Vf. The operational amplifier finishes the differential operation.
