Electrothermal office desk plate automatic switch circuit

Published:2011/8/24 21:06:00 Author:Christina | Keyword: Electrothermal, office, desk plate, automatic switch | From:SeekIC

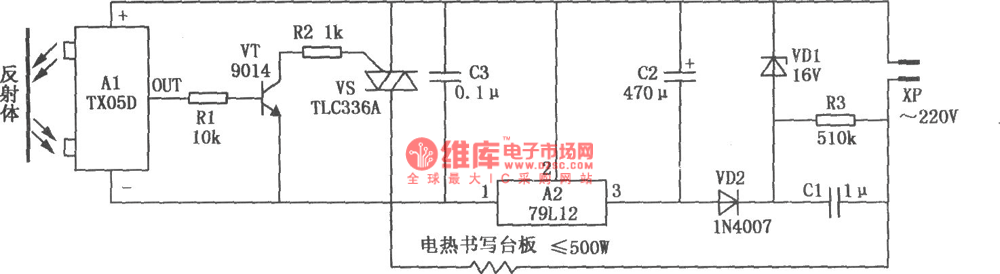

The electrothermal office desk plate automatic switch circuit is as shown in the figure, this device is composed of the ordinary electrothermal office desk plate and the infrared reflected type automatic switch which is composed of the TX05D, it has the automatic electricity heating function when someone is working on the desk, and also it has the function of automatic power off when no one is there. So it can save the electric energy, avoid the frequently plugfest, extend the service life of electrothermal office desk plate and prevent the accidents, it can be used on the ordinary electrothermal office desk plate, it is easy to make and very reliable.
