Division Circuit Composed of MC1494 and LM307

Published:2011/7/21 6:06:00 Author:Sue | Keyword: Division Circuit | From:SeekIC

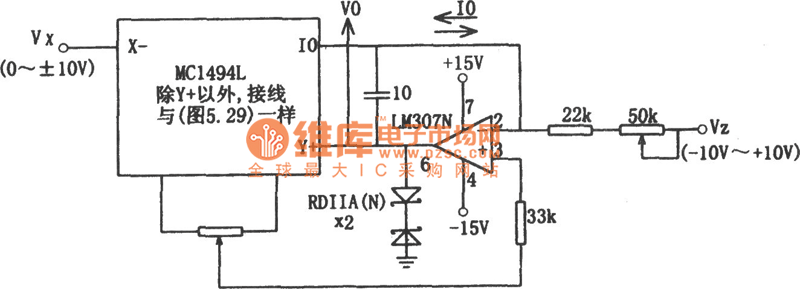

The picture shows division circuit composed of MC1494 and LM307. In the circuit, the output voltage Vo=10Vz/Vx. The input signal Vx and Vz can be either positive and negative, so the circuit is four-quadrant division circuit. The zener diode which is connected to LM307N's input terminal is output voltage's clamping diode when the input Vx is reduced.
