Delay light circuit with time base circuit(2)

Published:2011/5/5 7:40:00 Author:Nicole | Keyword: Delay light, time base | From:SeekIC

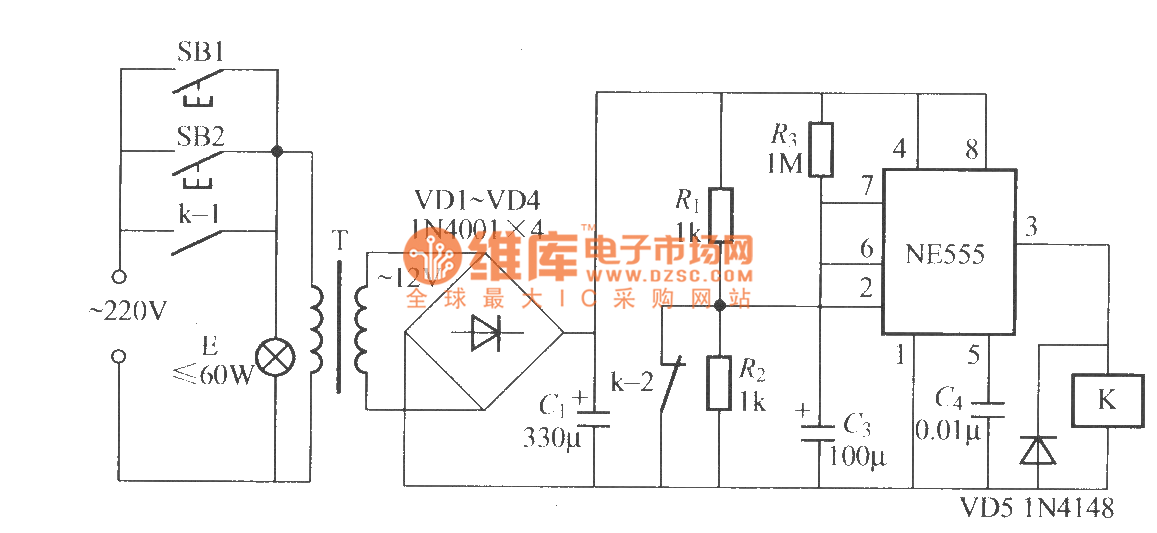

The figure is as shown, after turning off the light, the circuithas no power consumption. Relay K should use small electromagnetic relay with two groups of transfer contacts, such as JRX-13F、DC12V and so on.
