Delay 0.2-10s circuit

Published:2011/3/27 20:58:00 Author:Jessie | Keyword: delay | From:SeekIC

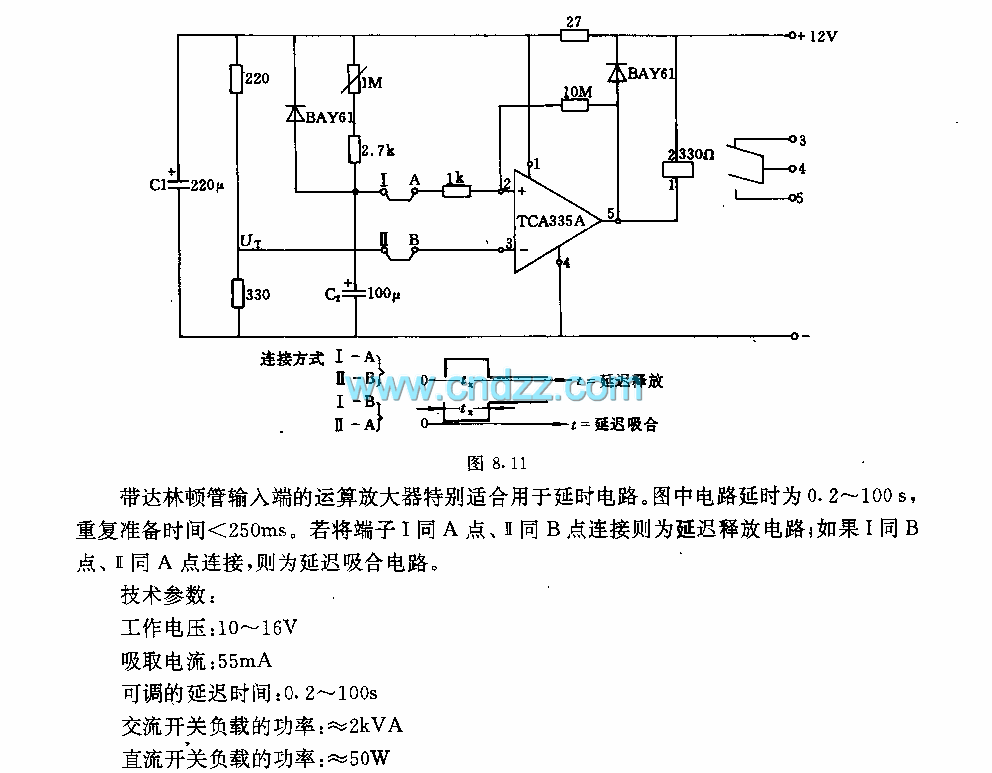

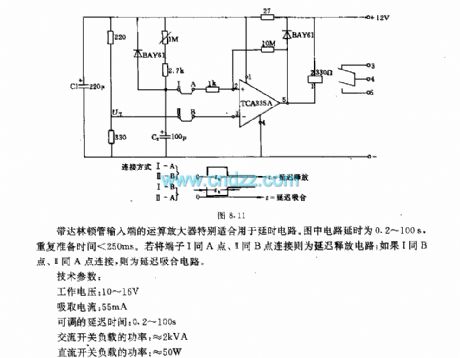

The operational amplifier of dainton tube input terminal is especially suitable for delay circuit. In figure, the circuit is 0.2~100s delay, repeat preparation time < 250ms. If the terminals 1 with A point, 2 with B connection, it is a delay circuit; If the terminals 1 withB point, 2 withA connection, it is a delay suck close circuit.
