DIODE_PHANTASTRON_AFC_FOR_AIRBORNE_RADAR_1

Published:2009/7/15 4:05:00 Author:Jessie | From:SeekIC

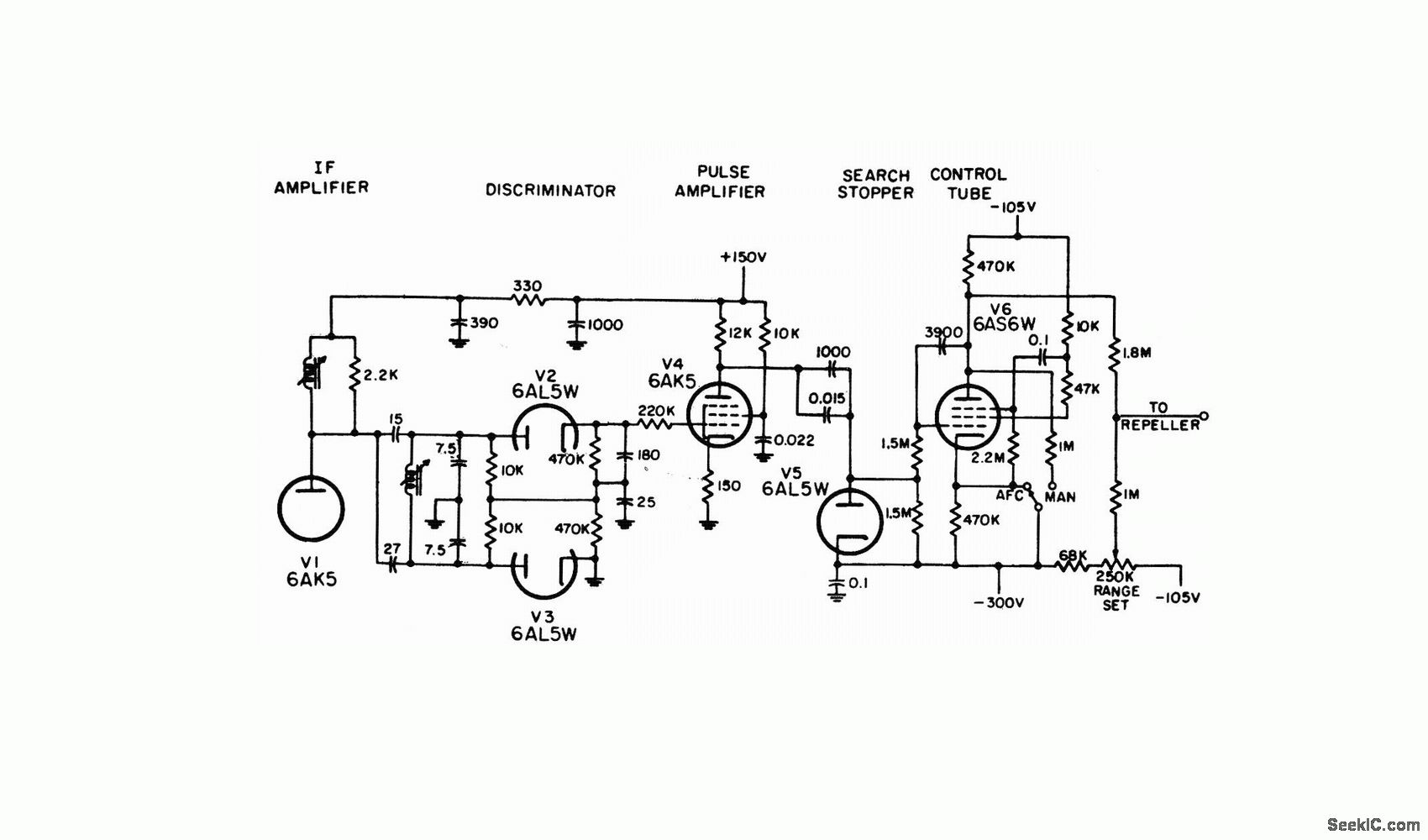

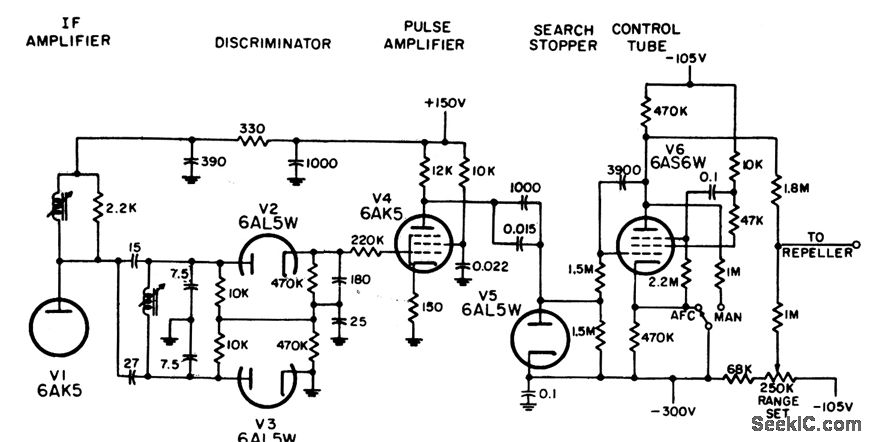

Pentode is astable phontastron during search and d-c amplifier during lock-on. Operation is nearly independent of tube characteristics. Provides tight control of local oscillator frequency because during lock-on, pentode furnishes direct control of klystron repeller.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron tube Circuits, 1963, p N 13-6.
