DIGITAL_MULTIPLE_GANG_POTENTIOMETER_CONTROL

Published:2009/6/15 23:06:00 Author:May | From:SeekIC

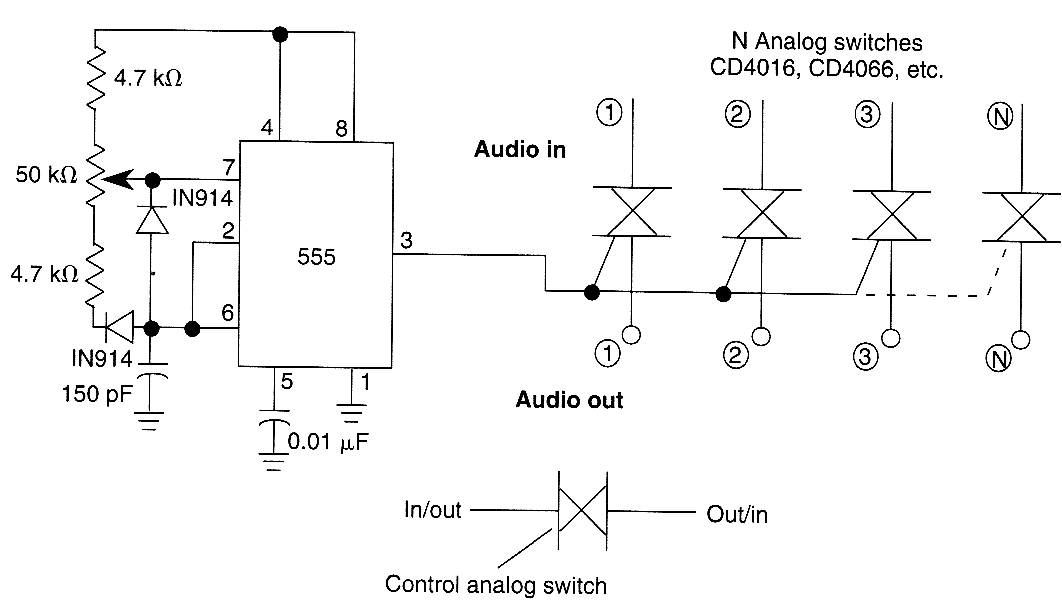

A 555 timer can be configured to simulate a multi-gang potentiometer by controlling the markspace ratio. The switching rate should be at least twice the maximum expected signal frequency the potentiometer has to handle.
