DIGITAL_LOCK_CIRCUIT

Published:2009/7/12 22:33:00 Author:May | From:SeekIC

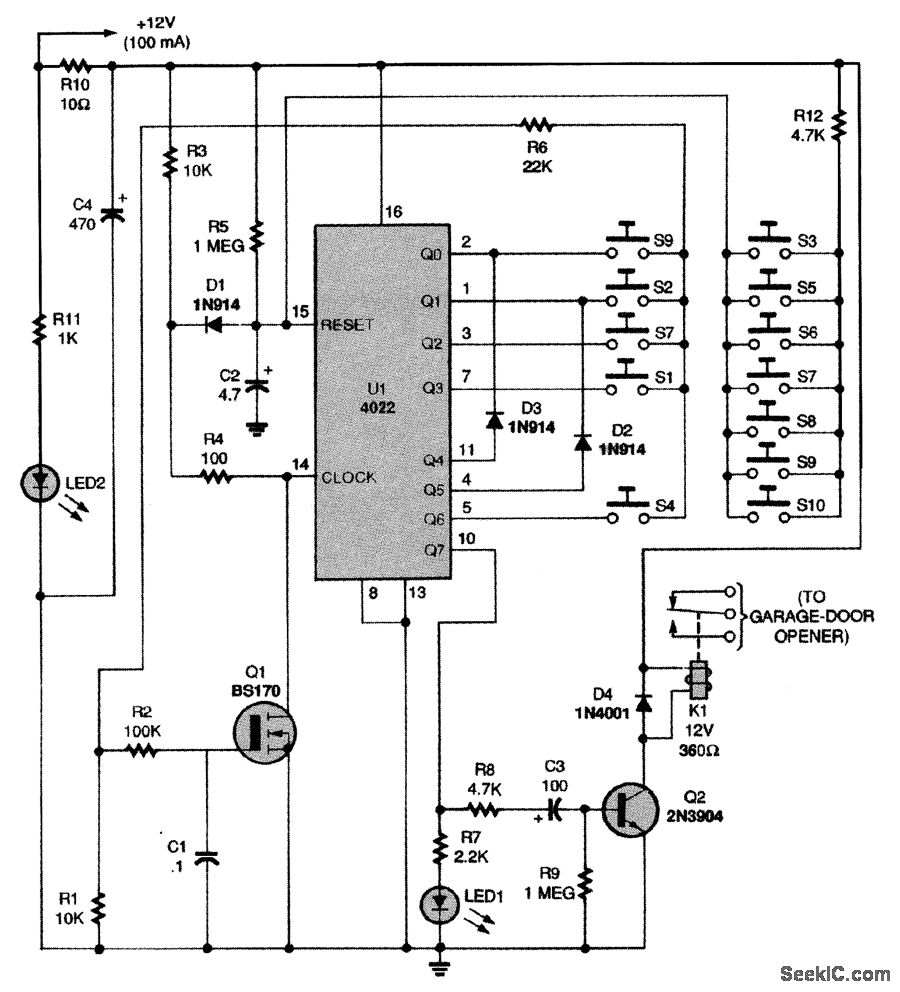

This circuit depends on the entry of a correct sequence code. An incorrect number that is not part of the code causes the circuit to reset. When the correct code is entered, Q2 operates relay K1 for a short time, depending on C3.
