DIAC_TRIAC_PHASE_CONTROL_OF_5_AMP_LOAD

Published:2009/7/20 6:19:00 Author:Jessie | From:SeekIC

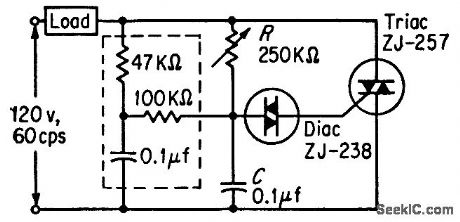

Uses two types of semiconductor switches together with R and C to give continuous control of power. Addition of second phase shift network (enclosed in dashed box) extends range of control to cover 5 to 95% of full power.-M. P. Southworth, Bidirectional Static Switch Simplifies Ac Control, Control Engineering, March 1964, p 75-76.
