DC switch circuit

Published:2011/7/3 19:06:00 Author:Christina | Keyword: DC, switch circuit | From:SeekIC

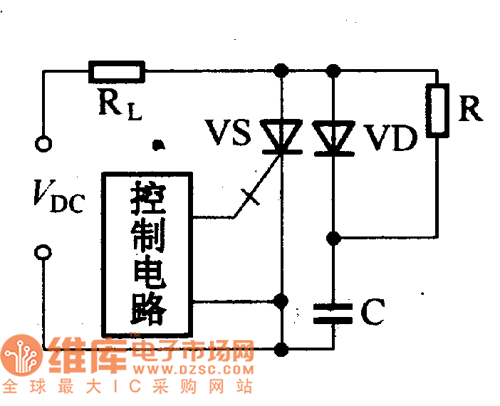

The DC switch circuit which is composed of the turn-off thyristor is as shown in the figure. The VD is the absorption diode, the C is the absorption capacitance, the R is the discharge resistance. DC switch circuit
